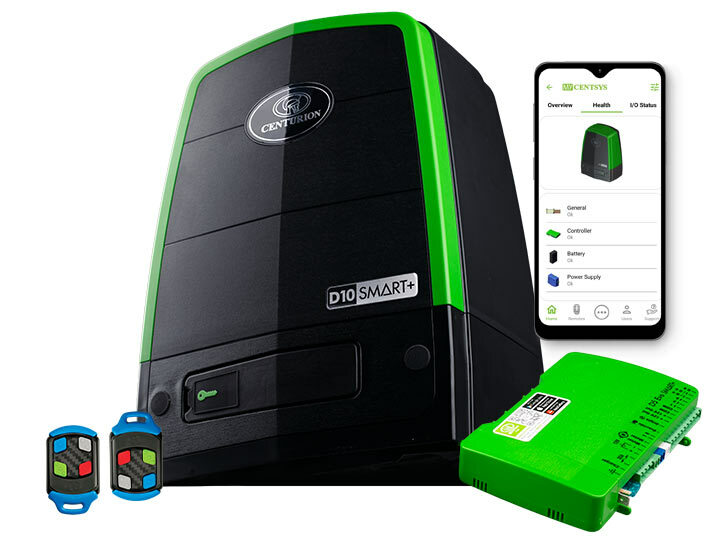

The Centurion D10 SMART+ sliding gate motor handles heavier gates and frequent daily use. With a 1,000kg capacity and up to 750 operations per day, it suits residential estates, townhouse complexes and commercial entrances. Its 24V motor and steel drive pinion provide the force needed for larger gates. Battery backup maintains access during power cuts, while built-in Wi-Fi and Bluetooth support smartphone control and monitoring.
For simple, reliable gate automation, enquire with Aero NZ today.
The Centurion D10 SMART+ sliding gate motor handles heavier gates and frequent daily use. With a 1,000kg capacity and up to 750 operations per day, it suits residential estates, townhouse complexes and commercial entrances. Its 24V motor and steel drive pinion provide the force needed for larger gates. Battery backup maintains access during power cuts, while built-in Wi-Fi and Bluetooth support smartphone control and monitoring.
For simple, reliable gate automation, enquire with Aero NZ today.
Built for heavier gates
A 1,000kg gate capacity and steel drive pinion suit larger sliding gates at shared residential and commercial entrances.
Handles frequent daily use
Rated for up to 750 operations per day, making it suitable for busy complexes, estates and workplaces.
Access during power cuts
A 24V system using two batteries keeps your gate usable when mains power is interrupted.
Connected gate management
Built-in Wi-Fi and Bluetooth support smartphone control, gate status monitoring and remote installer diagnostics.
Built-in tamper detection
Detects tampering with the operator and supports integration with optional security equipment.
Flexible access and security options
Six configurable channels support compatible equipment, including safety beams, a SMART Siren and an electric gate lock.
Specification | D10 SMART+ |
Application | Busy shared residential, commercial and industrial sliding gates |
Maximum gate weight | 1,000kg |
Maximum gate length | 50m, dependent on required push force |
Maximum gate speed | Up to 26m/min |
Speed at rated load | Up to 21m/min |
Maximum daily operations | 750, subject to manufacturer operating conditions |
Duty cycle with mains power | 45%, subject to manufacturer operating conditions |
Starting push force | 40kgf |
Rated push force | 30kgf |
Motor voltage | 24V DC |
Mains input | 110–240V AC, 50/60Hz |
Standard battery arrangement | 2 × 12V 7Ah batteries |
Battery charger output | 1.8A at 27.6V ±5% |
Mains current consumption | 590mA |
Motor current at rated load | 8A |
Wireless connectivity | Bluetooth Low Energy and 2.4GHz Wi-Fi |
Remote receiver | Built-in multichannel code-hopping receiver |
Remote storage | 1,500 remotes, with selective adding and removal |
Receiver frequency | 433.92MHz |
Drive pinion | 17-tooth steel pinion, Module 4 |
Obstruction sensing | Electronic |
Tamper detection | Built-in |
Manual release | Lockable, key-operated |
Accessory connections | 4 configurable low-current I/O channels and 2 configurable high-current I/O channels |
Low-current I/O rating | 100mA at 24V per channel |
High-current I/O rating | 3A at 24V per channel for a 10-second pulse |
Ingress protection | IP54 |
Operating temperature | −15°C to +50°C |
Operator dimensions | 295mm W × 205mm body depth × 390mm H |
Pinion centre height | 64mm above base |
Electromagnetic compatibility classification | Class A under CISPR 32 / EN 55032 |
Compatible optional accessories | Safety beams, sensitive edges, keypads, loop detectors, intercoms, SMART Siren, GLX900 electric gate lock and theft-deterrent cage |
Alternative power options | Solar, SMART PowerPack and low-voltage supply with the appropriate components |
