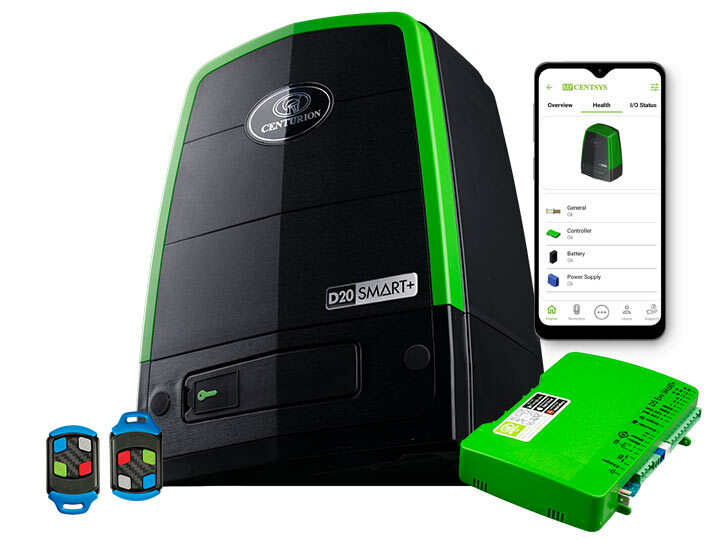

The Centurion D20 SMART+ sliding gate motor is built for heavy gates at commercial and industrial entrances. With a 2,000kg capacity, high starting force and up to 750 daily operations, it suits warehouses, industrial yards and large properties needing heavy-duty gate automation. A steel drive pinion moves substantial gates, while battery backup maintains access during power cuts. Built-in Wi-Fi and Bluetooth support smartphone control and monitoring.
For simple, reliable gate automation, enquire with Aero NZ today.
The Centurion D20 SMART+ sliding gate motor is built for heavy gates at commercial and industrial entrances. With a 2,000kg capacity, high starting force and up to 750 daily operations, it suits warehouses, industrial yards and large properties needing heavy-duty gate automation. A steel drive pinion moves substantial gates, while battery backup maintains access during power cuts. Built-in Wi-Fi and Bluetooth support smartphone control and monitoring.
For simple, reliable gate automation, enquire with Aero NZ today.
Capacity for heavy gates
Automates sliding gates weighing up to 2,000kg, ideal for substantial entrances at commercial and industrial properties.
High starting force
A 52kgf starting force and 39kgf rated push force support the movement of large, heavy gates.
Access during power cuts
A 24V system using two batteries keeps your gate usable when mains power is interrupted.
Built for busy sites
Rated for up to 750 daily operations, supporting frequent vehicle access at warehouses, industrial yards and commercial entrances.
Connected gate management
Built-in Wi-Fi and Bluetooth support smartphone control, gate status monitoring and remote installer diagnostics.
Expandable site security
Built-in tamper detection and six configurable accessory channels support compatible safety devices, access controls, sirens and electric locks.
Specification | D20 SMART+ |
Application | Heavy-duty commercial and industrial sliding gates |
Maximum gate weight | 2,000kg |
Maximum gate length | 25m in the product page and brochure; 50m in the June 2026 manual. Confirm for the installation |
Maximum gate speed | Up to 18m/min |
Speed at rated load | Up to 16m/min |
Maximum daily operations | 750, subject to manufacturer operating conditions |
Duty cycle with mains power | 45%, subject to manufacturer operating conditions |
Starting push force | 52kgf |
Rated push force | 39kgf |
Motor voltage | 24V DC |
Mains input | 110–240V AC, 50/60Hz |
Standard battery arrangement | 2 × 12V 7Ah batteries |
Battery charger output | 1.8A at 27.6V ±5% |
Mains current consumption | 590mA |
Motor current at rated load | 9A |
Wireless connectivity | Bluetooth Low Energy and 2.4GHz Wi-Fi |
Remote receiver | Built-in multichannel code-hopping receiver |
Remote storage | 1,500 remotes, with selective adding and removal |
Receiver frequency | 433.92MHz |
Drive pinion | 13-tooth steel pinion, Module 4 |
Obstruction sensing | Electronic |
Tamper detection | Built-in |
Manual release | Lockable, key-operated release lever |
Accessory connections | 4 configurable low-current I/O channels and 2 configurable high-current I/O channels |
Low-current I/O rating | 100mA at 12/24V per channel |
High-current I/O rating | 3A at 12/24V per channel for a 10-second pulse |
Ingress protection | IP54 |
Operating temperature | −15°C to +50°C |
Operator dimensions | 295mm W × 205mm body depth × 390mm H |
Pinion centre height | 64mm above base |
Electromagnetic compatibility classification | Class A under CISPR 32 / EN 55032 |
Compatible optional accessories | Safety beams, sensitive edges, keypads, loop detectors, intercoms, SMART Siren, GLX900 electric gate lock and theft-deterrent cage |
Alternative power options | Solar, SMART PowerPack and low-voltage supply with the appropriate components |
