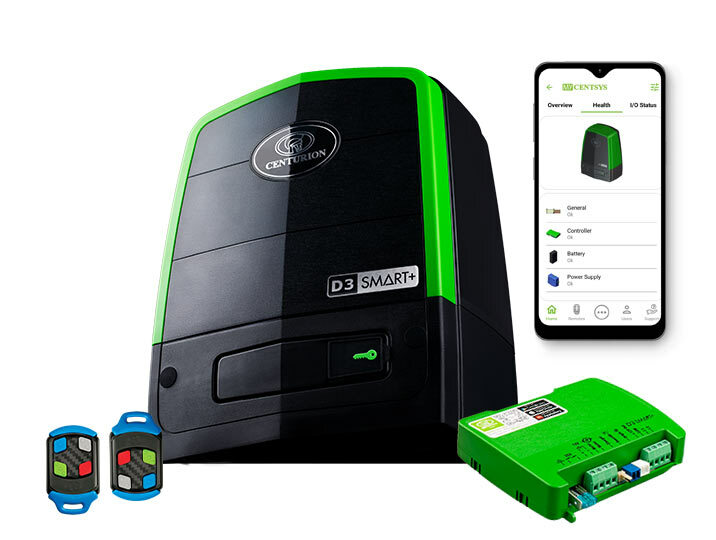

The Centurion D3 SMART+ sliding gate motor makes everyday driveway access easy.
Designed for residential gates weighing up to 300kg, it combines quiet operation with battery backup to keep your gate moving during power cuts. Built-in Wi-Fi and Bluetooth support smartphone control and monitoring, while electronic obstruction sensing and a lockable manual release provide practical safeguards. Suitable for gates up to 10 metres long, subject to gate resistance.
For simple, reliable gate automation, enquire with Aero NZ today.
The Centurion D3 SMART+ sliding gate motor makes everyday driveway access easy.
Designed for residential gates weighing up to 300kg, it combines quiet operation with battery backup to keep your gate moving during power cuts. Built-in Wi-Fi and Bluetooth support smartphone control and monitoring, while electronic obstruction sensing and a lockable manual release provide practical safeguards. Suitable for gates up to 10 metres long, subject to gate resistance.
For simple, reliable gate automation, enquire with Aero NZ today.
Access during power cuts
Battery-driven operation keeps your gate usable when mains power is interrupted.
Quiet driveway operation
A nylon drive pinion helps reduce running noise, ideal for residential entrances.
Connected control
Built-in Wi-Fi and Bluetooth support smartphone operation, gate monitoring and installer diagnostics.
Obstruction detection
Electronic sensing detects obstructions during gate movement, with compatible safety beams available separately.
Flexible remote access
Store up to 1,500 remotes and selectively add or remove them as access needs change.
Manual access when needed
A lockable, key-operated release allows manual gate movement if powered operation is unavailable.
Specification | D3 SMART+ |
Application | Residential sliding gates |
Maximum gate length | 10m, dependent on required push force |
Speed at rated load | Up to 21m/min |
Maximum daily operations | 20 |
Duty cycle with mains power | 25% |
Maximum starting push force | 18kgf |
Maximum rated push force | 12kgf |
Motor voltage | 12V DC |
Mains input | 110–240V AC, 50/60Hz |
Standard battery arrangement | 1 × 12V 7Ah battery |
Battery charger output | 1.8A at 14.3V ±5% |
Motor current at rated load | 11A |
Wireless connectivity | Bluetooth Low Energy and 2.4GHz Wi-Fi |
Remote receiver | Built-in multichannel code-hopping receiver |
Receiver frequency | 433.92MHz |
Drive pinion | Nylon |
Manual release | Lockable, key-operated |
Ingress protection | IP55 |
Operating temperature | −15°C to +50°C |
Operator dimensions | 275mm W × 181mm body depth × 333.5mm H |
Compatible optional accessories | Safety beams, sensitive edges, keypads, loop detectors and intercom systems |
Alternative power options | Solar and low-voltage supply with the appropriate components |
