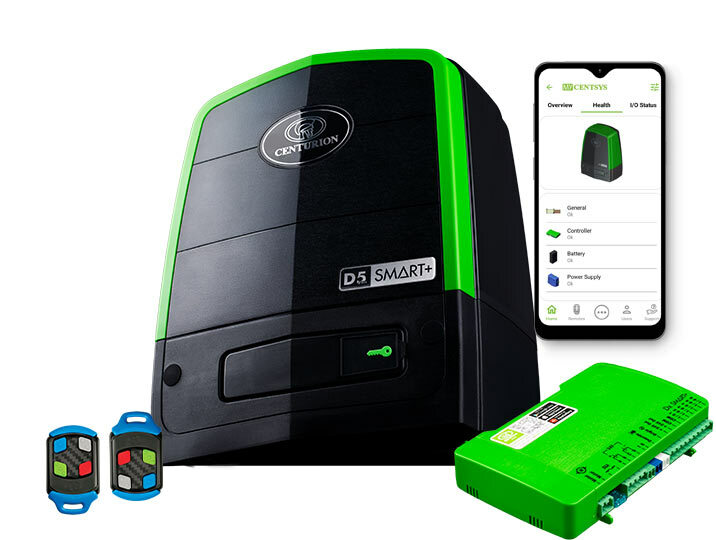

The Centurion D5-EVO SMART+ sliding gate motor suits heavier residential gates and shared driveways. With a 500kg gate capacity, steel drive gear and up to 150 operations per day, it handles regular use with ease. Battery backup keeps access available during power cuts, while built-in Wi-Fi and Bluetooth support smartphone control and monitoring. Suitable for gates up to 20 metres long, subject to gate resistance.
For simple, reliable gate automation, enquire with Aero NZ today.
The Centurion D5-EVO SMART+ sliding gate motor suits heavier residential gates and shared driveways. With a 500kg gate capacity, steel drive gear and up to 150 operations per day, it handles regular use with ease. Battery backup keeps access available during power cuts, while built-in Wi-Fi and Bluetooth support smartphone control and monitoring. Suitable for gates up to 20 metres long, subject to gate resistance.
For simple, reliable gate automation, enquire with Aero NZ today.
Capacity for heavier gates
Automates sliding gates weighing up to 500kg, ideal for larger residential entrances.
Built for regular use
A steel drive gear and rating of up to 150 daily operations suit busy homes and shared driveways.
Access during power cuts
Battery-driven operation keeps your gate usable when mains power is interrupted.
Smartphone control
Built-in Wi-Fi and Bluetooth support gate operation, status monitoring and remote installer diagnostics.
Flexible access management
Store up to 1,500 remotes, with selective adding and removal as access needs change.
Expandable security options
Accessory connections support compatible safety beams, keypads, intercoms, a SMART Siren and an electric gate lock.
Specification | D5-EVO SMART+ |
Application | Residential, shared residential and light-industrial sliding gates |
Maximum gate length | 20m, dependent on required push force |
Speed at rated load | Up to 19m/min |
Maximum daily operations | 150 |
Duty cycle with mains power | 50% |
Starting push force | 30kgf |
Rated push force | 17kgf |
Motor voltage | 12V DC |
Mains input | 110–240V AC, 50/60Hz |
Standard battery arrangement | 1 × 12V 7Ah battery |
Battery charger output | 1.8A at 14.3V ±5% |
Motor current at rated load | 15A |
Wireless connectivity | Bluetooth Low Energy and 2.4GHz Wi-Fi |
Remote receiver | Built-in multichannel code-hopping receiver |
Receiver frequency | 433.92MHz |
Drive gear | Steel |
Obstruction sensing | Electronic |
Manual release | Lockable, key-operated |
Accessory connections | 3 inputs, 2 configurable low-current I/O channels and 1 high-current output |
Low-current I/O rating | 100mA at 12V per channel |
High-current output rating | 3A at 12V for a 10-second pulse |
Ingress protection | IP55 |
Operating temperature | −15°C to +50°C |
Operator dimensions | 275mm W × 181mm body depth × 333.5mm H |
Compatible optional accessories | Safety beams, sensitive edges, keypads, loop detectors, intercoms, SMART Siren and GLX900 electric gate lock |
Alternative power options | Solar and low-voltage supply with the appropriate components |
