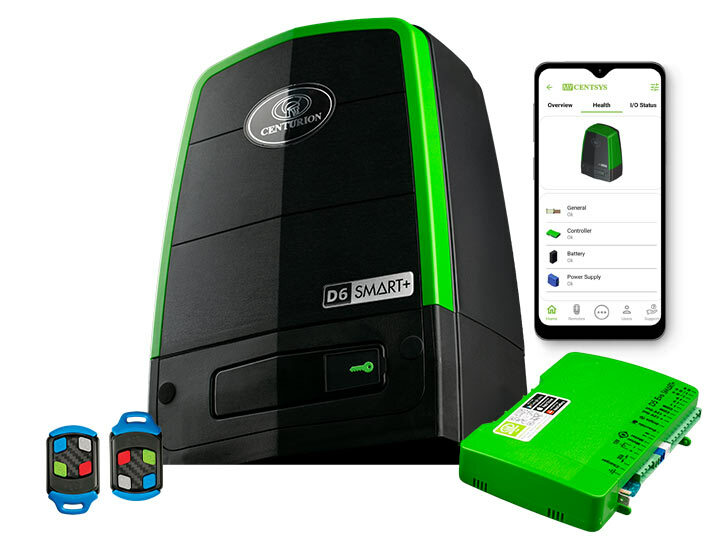

The Centurion D6 SMART+ sliding gate motor provides faster driveway access for residential gates weighing up to 600kg. With speeds up to 35 metres per minute and a steel drive pinion, it suits busy homes, shared driveways and light-industrial entrances. A 24V battery system keeps access available during power cuts, while built-in Wi-Fi and Bluetooth support smartphone control and monitoring.
For simple, reliable gate automation, enquire with Aero NZ today.
The Centurion D6 SMART+ sliding gate motor provides faster driveway access for residential gates weighing up to 600kg. With speeds up to 35 metres per minute and a steel drive pinion, it suits busy homes, shared driveways and light-industrial entrances. A 24V battery system keeps access available during power cuts, while built-in Wi-Fi and Bluetooth support smartphone control and monitoring.
For simple, reliable gate automation, enquire with Aero NZ today.
Faster driveway access
Speeds of up to 35 metres per minute help reduce waiting time when entering or leaving your property.
Capacity for larger gates
Handles sliding gates weighing up to 600kg, with a steel drive pinion for heavier residential gates.
Access during power cuts
A 24V system using two batteries keeps your gate moving when mains power is interrupted.
Smartphone control
Built-in Wi-Fi and Bluetooth support gate operation, status monitoring and remote installer diagnostics.
Ready for busy entrances
A rating of up to 150 daily operations suits busy households, shared driveways and light-industrial sites.
Flexible accessory integration
Six configurable channels support compatible access and security equipment, including safety beams, a SMART Siren and an electric gate lock.
Specification | D6 SMART+ |
Application | Residential, shared residential and light-industrial sliding gates |
Maximum gate weight | 600kg |
Maximum gate length | 100m, dependent on required push force |
Maximum gate speed | Up to 35m/min |
Speed at rated load | Up to 30m/min |
Maximum daily operations | 150 |
Duty cycle with mains power | 50% |
Starting push force | 30kgf |
Maximum rated push force | 17kgf |
Motor voltage | 24V DC |
Mains input | 110–240V AC, 50/60Hz |
Standard battery arrangement | 2 × 12V 7Ah batteries |
Battery charger output | 1.3A at 27.6V ±5% |
Mains current consumption | 430mA |
Motor current at rated load | 13A |
Wireless connectivity | Bluetooth Low Energy and 2.4GHz Wi-Fi |
Remote receiver | Built-in multichannel code-hopping receiver |
Remote storage | 1,500 remotes, with selective adding and removal |
Receiver frequency | 433.92MHz |
Drive pinion | 17-tooth steel pinion for steel rack installations |
Obstruction sensing | Electronic |
Manual release | Lockable, key-operated |
Accessory connections | 4 configurable low-current I/O channels and 2 configurable high-current I/O channels |
Low-current I/O rating | 100mA at 24V per channel |
High-current I/O rating | 3A at 24V per channel for a 10-second pulse |
Ingress protection | IP55 |
Operating temperature | −15°C to +50°C |
Operator dimensions | 275mm W × 181mm body depth × 372.5mm H |
Compatible optional accessories | Safety beams, sensitive edges, keypads, loop detectors, intercoms, SMART Siren, GLX900 electric gate lock and theft-deterrent cage |
Alternative power options | Solar, SMART PowerPack and low-voltage supply with the appropriate components |
