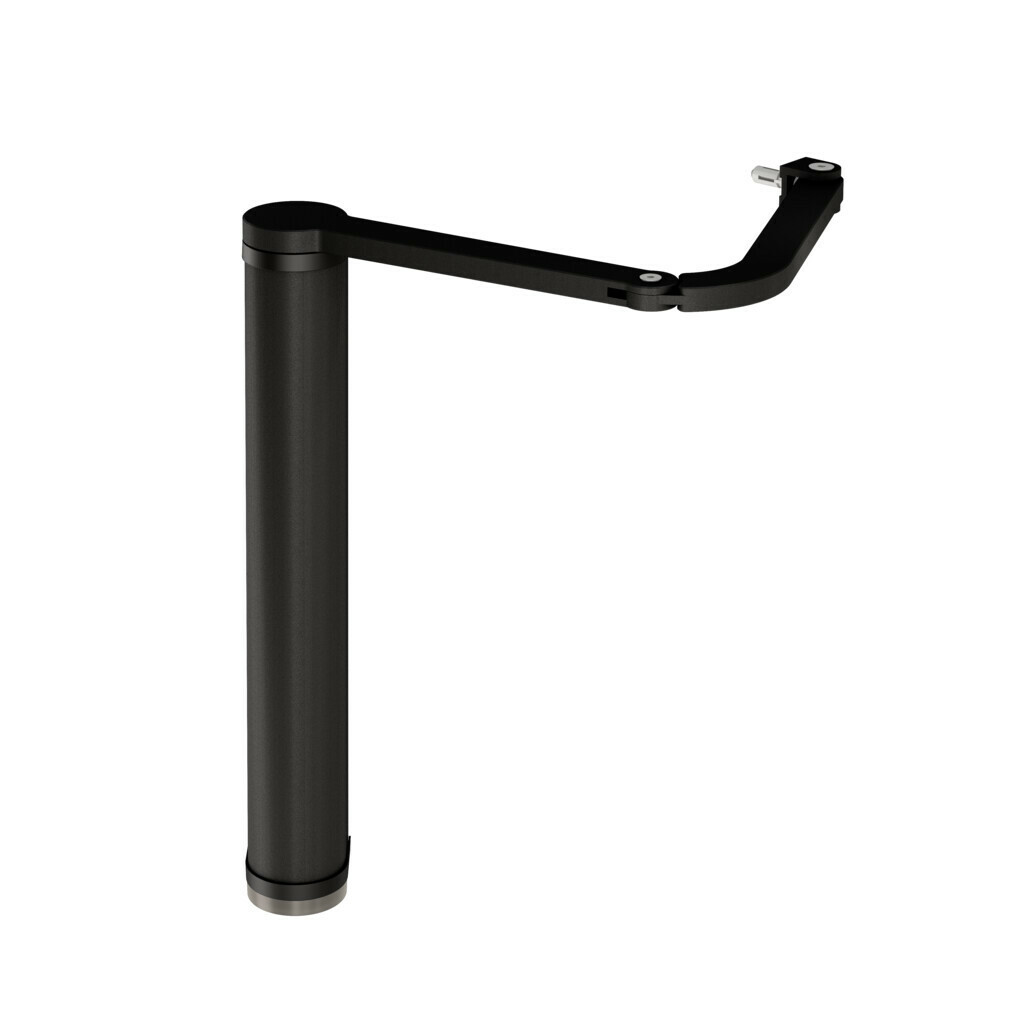

The Locinox VENUS is an all‑in‑one motorised gate operator designed specifically for pedestrian swing gates. Its compact, brushless motor remains unaffected by manual force and delivers smooth, quiet closing every time. Simply give the gate a gentle push; the built‑in “push‑and‑go” feature engages the motor to open, then closes automatically. Adjustable closing and waiting times make Venus suitable for wheelchair access and pedestrian traffic.
The operator includes three different arm options (sliding, articulated and compact) allowing installation on virtually any gate post or hinge type. Integrated electronics and Quick‑Fix mounting make it truly plug‑and‑play. With obstacle detection and automatic reversal, Venus meets EN 16005 and EN 12453 safety standards. Pair it with access control to create a low‑energy gate opener for residential, commercial or public environments.
Powerful yet safe – 150 Nm closing torque; brushless motor with back‑drivability for manual use; compliant with EN 16005.
Adjustable operation – push/pull‑to‑go, variable pause and closing speeds, and configurable courtesy light settings.
Multi‑purpose outputs – 3 output connectors for electric lock, courtesy or external light, plus auxiliary 24 V supply; 3 input connectors for control and safety devices.
Flexible installation – fits 80 mm posts (60 mm with adaptor plate); three arm types (sliding, articulated or compact 180°); Quick‑Fix system for easy mounting.
Durable construction – steel gear box, anodised aluminium cover; IP54 protection rating; operating temperature −30 °C to +70 °C; tested to 500 000 cycles.
Accessible design – reversible motor allows manual opening; push‑and‑go activation for people with limited mobility; adjustable waiting times for wheelchair access.
Safety features – integrated warning light, automated obstacle detection with reverse, EN 16005 & EN 12453 compliant; optional ADA compatibility icon.
Warranty – 2‑year manufacturer’s warranty.
Motorised gate closer with integrated electronics
Torque: 150 Nm
Gate size & weight: up to 1400 mm wide and 100 kg
Profiles: fits 80 mm posts (60 mm with adaptor)
Power supply: 110–240 V AC input, 24 V DC outputs (max 48 W)
Inputs & outputs: 3 inputs and 3 outputs for locks/lights/aux power
Motor: brushless, 24 V DC; back‑drivable for manual use
Operating temperature: –30 °C to +70 °C
Environmental rating: IP54
Dimensions: fits 80 mm profiles; optional adapter for 60 mm posts
Compliance: ETL‑tested; EN 16005 & EN 12453; tested to 500 000 cycles.
