The FAAC S450H is a 24V hydraulic gate operator for swing gates, capable of handling gates up to 3 meters wide. This model is designed for continuous use and includes an integrated encoder SAFEcoder with anti-crushing function, which reverses upon obstacle detection. It also features opening and closing mechanical stops and operates with a maximum force of over 5000 N, ensuring efficient and safe operation.
|
Model |
S450H CBAC |
S450H SB |
|---|---|---|
|
Power supply voltage |
220-240V~ 50/60 Hz |
|
|
Electric motor |
With brushes 24V |
|
|
Max. power |
60 W |
|
|
Max expressed force |
> 5000 N |
|
|
Rod max speed |
>25 mm/sec |
|
|
Rod travel |
311 mm |
|
|
Max. leaf opening angle |
110° |
|
|
Operating ambient temperature |
-20°C ÷ +55°C |
|
|
Protection class |
IP55 |
|
|
Weight |
6.5 Kg |
|
|
Use frequency |
Continuous use |
|
|
Max. leaf width |
2 m |
3 m |
|
Type of oil |
FAAC HP OIL |
|
|

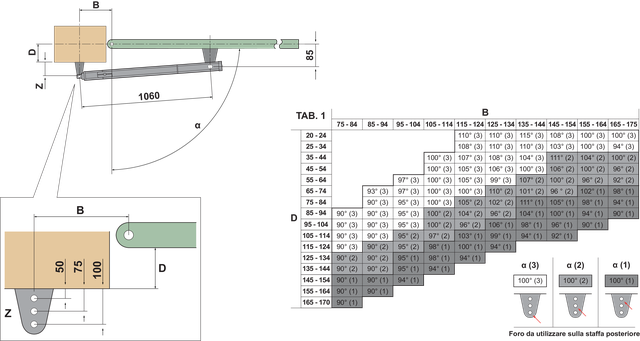

Mounting brackets |
Rear multi-position bracket to be screwed – front adjustable to be screwed |
|
|
Dimensions (LxDxH) |
1131 x 85 x 119 mm |
|
|
Electronic equipment |
Not included |
|
